Specifications

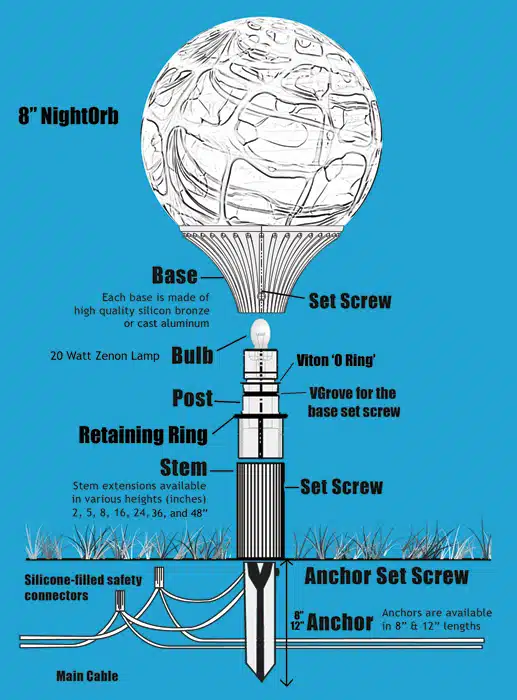

orb-drawing

Click to Enlarge

All NightOrb™ Fixtures Include:

Hand-blown 8” Orb, UV stable,
soda-lime glass 96COE
Lamp: Starbright Xelogen,
20,000 long life hours
8” Land Mount NightOrbs™ also include:

Wire: length, 24”, 16/2 Cu Nickel-Plated UV-Brown, UL 250° C
PVC anchor
Selecting Your Orbs for Appropriate Display
Please consult the table below when choosing your NightOrbs™, WaterOrbs™, and Orblets™ (4”)

For Land Display
For Water Fixture Display
For Hanging Display
8”, 13”, 18”4”, 8”, 13”, 18”4”, 8”

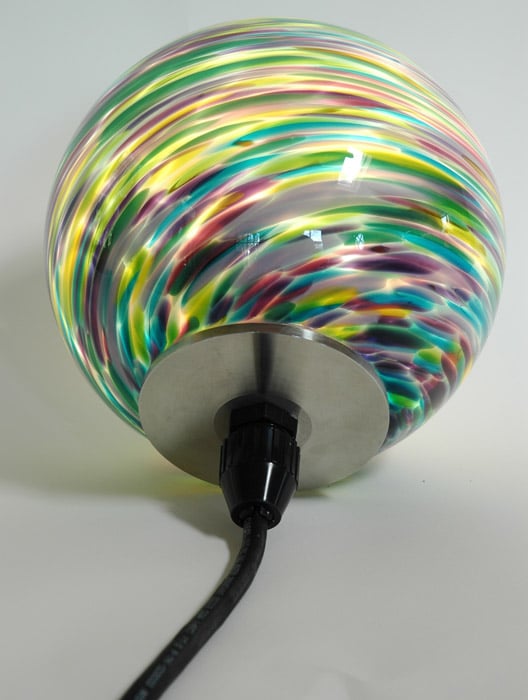

8" WaterOrb™ with 316 stainless steel ballast with UL approved watertight connector and underwater cable.

8″ WaterOrb™ with 316 stainless steel ballast with UL approved watertight connector and underwater cable.

ELECTRICAL SPECIFICATIONS
Land Mount NightOrbs™ (in both sphere and egg shapes), WaterOrbs™, and Orblets™ use state-of-the-art Xelogen lamps, which provide optimum light levels with minimum energy usage and which are known to outlast other lamps. For instance, 20-watt Xelogen lamps have an average life span of 20,000 hours. In addition, unlike Halogen lamps, Xelogen lamps can be touched safely. All bi-pin sockets are ceramic with nickel-plated contacts that have a life expectancy of 20+ years. This socket’s two-part base is sealed with a Viton O-Ring.

CONSTRUCTION AND FINISH COAT
Land-Mount Nightorbs™ have a two-part sand-cast aluminum assembly, consisting of the light post and orb base (assembly also available with cast silicon bronze base and brass light post). The light post locks in place when inserted into the orb base, providing a watertight compartment for the lamp.

The finish coat on the sand-cast aluminum base is Class A TGIC polyester powder coat gold/bronze. The aluminum light post has been anodized for corrosion resistance.

8" and 12" PVC Anchors

8″ and 12″ PVC Anchors

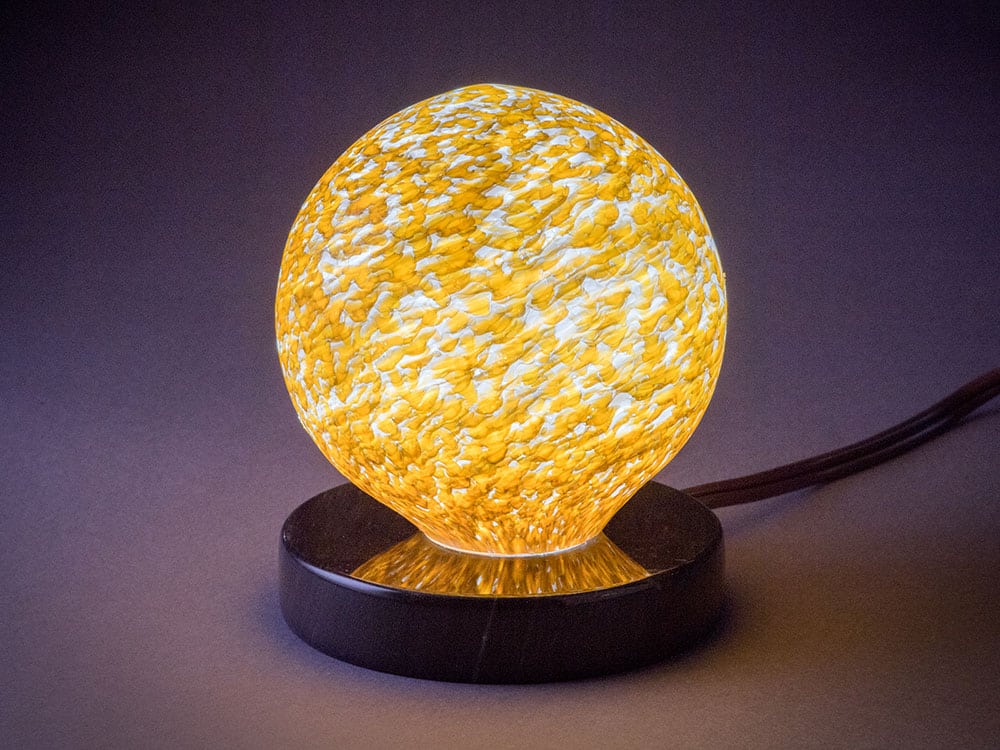

8″, 13”, and 18” WaterOrbs™ have 316 stainless steel ballast with UL approved watertight connector and under-water cable. 4” Orblets™ have black polycarbonate ballast and UL approved water-tight connector and underwater cable.

Download PDF of specs
